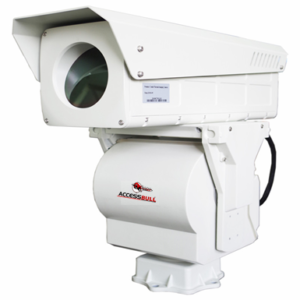

Cooled Sensor Thermal Camera

Key Benefits:

20mk NETD ensures premium thermal image.
Unique AS continuous optical zoom and 3CAM high precision mechanical engineering.
Superb inhomogeneous correction ensures crisp thermal image.
SDE image enhancement.
Aluminum alloy enclosure, IP 66 rated.

Details

Overview:
- Long range 24-hours monitoring.
- Delicate and smooth images．
- Convenient for installation and application.
- 360 degree of Omni-directional Pan-Tilt
- Super-strong aluminum alloy with IP66
- Higher sensitivity
- Effective in all environments
- Small size and low weight
Applications:
- Seaport and airport monitoring;
- Water system monitoring;
- Storage monitoring;
- Military base security monitoring;
- Oilfield & oil depot security;
- Fire source prevention & monitoring;
- Ecological and environmental monitoring;
- Border and coastal defense;
- Urban security and anti-UAV applications;
- Highways and railways monitoring.

Specification

Model	AB-PSCN323	AB-PSCN326
Detection	Vehicle: 18,000m / Human: 11,000m
Identification	Vehicle: 7,000m / Human: 3,500m
Thermal Camera
Sensor	Cooled Focal Plane Array (FPA) MCT HgCdTe detector Stirling cryocooler
Resolution	384 × 288 pixel	640 × 512 pixel
Spectral range	3.7 – 4.8μm, MWIR
NETD	20mK (@25℃ F4.0)
Focal length	15 – 300 mm
Field of view(horizontal)	21.2° × 16.8° – 1.08° × 0.84°		35°×28°～1.8°×1.4°
PTZ
Duty	30kg CNC PT
Rotation	Pan: 0～360°, Tilt: -45°～+45°
Rotation speed	Pan: 0.01°～30°/S, tilt: 0.01°/S ～15°/S
Accuracy	±0.1°
Preset	255 presets, support lens zooming and focusing preset
Mode	Support 6 cruising line, 1 apple-skin scanning, 1 line-cruising
Network
Network interface	RJ45.10, 10/100 Base-T adaptive (integrated video output RS422/485)
Network Protocol	TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; support PSIA, ONVIF2.0, GB28181 and other network protocol.
Environment Parameter
Operating temperature	-25℃~+60℃(-40℃ Optional)
Storage temperature	-45℃～70℃
Protection Level	IP66
General
Total Consumption	180W
Power supply	AC/DC24V, anti-reverse connection protection
Weight	≤25kg (include PTZ)
