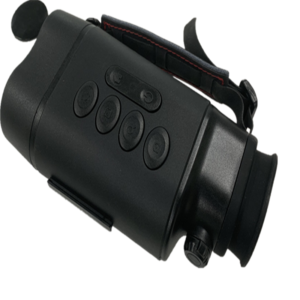

Handheld Dual Sensor Fusion Thermal Camera

We Turn Your Idea Into Product

Handheld Dual Sensor Fusion Thermal Camera

Features:

Product’s Highlights

  • Dual-lens muti-spectral technology, up to six modes with one-click switching;
  • Fusion Zoom, can recognize the target features, see the face;
  • Hot spot tracking, marking the heat sources to highlight the heat sources;
  • Electronic Compass Orientation;
  • Infrared dual-lens fusing technology will clearly show the outline;
  • Infrared dual-lens heat search can make up for the shortcomings of ordinary night vision devices, which can discover the target’s shadow at night, to avoid the maximum possibility of blind spot;
  • Ordinary telescopes, thermal imaging;
  • The infrared dual-lens heat search can see through the bushes and trees  of the target.

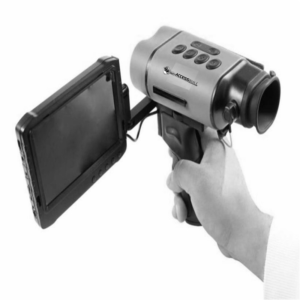

Handheld Dual Sensor Fusion Thermal Camera2B
Handheld Dual Sensor Fusion Thermal Camera
  • Overview
    • Low light level imaging channel, spectral range 0.4 um ~ 1.2 um, 2048 x 2048,10-4 Lux, 30 hz
    • Infrared thermal imaging channel, spectral range 8um ~ 14um, 17um, 384*288, 60MK@F1.0, 30Hz Built-in multiple color palettes and crosshair indicator
    • Infrared band / low-light-level band / fusion thermal image / Fusion pseudo-color / Fusion Zoom / Infrared pseudo-color Imaging 6 modes
    • With 4X Zoom picture-in-picture function
    • Fusion Hot Target Automatic Tracking Function
  • Applications:

    • Public Places (Such as; Schools, Religious Places etc)

    • Seaport and airport monitoring;

    • Water system monitoring;

    • Storage monitoring;

    • Military base security monitoring;

    • Oilfield & oil depot security;

    • Fire source prevention & monitoring;

    • Ecological and environmental monitoring;

    • Border and coastal defense;

    • Urban security and anti-UAV applications;

    • Highways and railways monitoring.

Model

AB-ARDN02-25

Thermal Imaging Camera

Thermal

Spectral Range    8um ~ 14um,

17um, 384*288,

60 MK@F1.0,30 HZ

FOV

16°0.6°×12°44.4°

Lens

21mm

Shutter

NO SHUTTER ADAPTIVE   SCENE CORRECTION

Low Light Camera

Low light

0.4 um-1.2 Um, 2048 x 2048,10-4 Lux, 30 HZ

FOV

9°×6°

Lens

25mm

specifications

Imaging Mode

Infrared band / low-light-level band / fusion   thermal image / Fusion pseudo color / Fusion Zoom / Infrared pseudo color

Optical Zoom

4x Optical Zoom

INTELLIGENT ALGORITHM

Fusion hot spot target auto-tracking

Brightness / Contrast

Fully automatic, manual

Image Enhancement

Fusion Fog Penetration Enhancement

Image Capture

Yes

Image Storage

BUILT-IN 16GSD card, can store not less than   10000 static pictures

Image Download

USB

Video Display

SUPPORT PAL ANALOG VIDEO

BUILT-IN DISPLAY

720 X 540 LCOS

Electrical Interface

Power, USB, ANALOG VIDEO

Fusion Imaging Range

Fusion imaging: 1.8 x 0.5 m person; Detection   ≥4000M; identification ≥1500M

Mechanical Interface

QUARTER-INCH TRIPOD

Charging

USB POWER ADAPTER 5VDC

Battery Life

≥8h

Physical Property

Weight

503.5 g

Dimensions

175.0mm×88.7mm×48.2mm

Operating Temperature

-20℃~+50℃(Optional -40℃~+60℃)

Storage temperature

-40℃~+60℃
