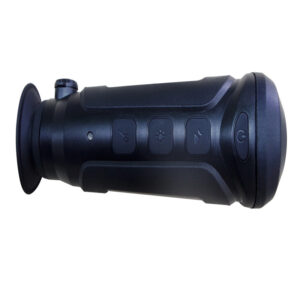

Handheld Monocular Thermal Camera

Features:

Product’s Highlights

Designed for mobile observation, ow weight, low consumption
Aluminum alloy housing, weatherproof rate IP66, anti-rain, anti-dust
5th generation uncooled thermal sensor  NETD up to 50mk, higher sensitivity, little effect by rain, fog, and snow, obtain more delicate picture
SDE image detail enhancement technology, no noise, B/W and B/W inverse color mode

Details

Overview:
Small size, one hand operation
Live transmission via WIFI, APP real-time browsing, recording, photographing, playback and other operations on smartphone
Built-in multiple color palettes and crosshair indicator
Hot-spot tracking function support
Applications:
- Public Places (Such as; Schools, Religious Places etc)
- Seaport and airport monitoring;
- Water system monitoring;
- Storage monitoring;
- Military base security monitoring;
- Oilfield & oil depot security;
- Fire source prevention & monitoring;
- Ecological and environmental monitoring;
- Border and coastal defense;
- Urban security and anti-UAV applications;
- Highways and railways monitoring.

Specification

Model	AB-ASN0214
Detection	Vehicle 1500m
	Human 520m
Identification	Vehicle 380m
	Human 160m
Sensor	5th generation UFPA
Resolution	384*288
Wave length	7.5~14μm
Digital zoom	2x ; 4 x
Color mode	Hot-white/Hot-black
Lens	20mm, F1.0
FOV	28°*21°
Eyepiece display	640*480 , LCOS binocular display with eyeshade, high hidden,5 level brightness can adjust
Image storage/video	4G memory card, 1000photos in JPEG format, video for 3.5 hours in AVI format, USB export
ECO mode	Auto
Operation	Four buttons, single hand
Battery parameter	Operation voltage DC: 3.7V
	Power consumption＜1W
	1 lithium battery,25500，3000 mAh ;
	Continuous working time : > 7 hour
	Using life > 500 times , charge/ discharge cycles
Starting time	<3s
Interface	Video output micro USB
Weatherproof	IP66
Humidity	10%~95% (non-condensing)
Storage temperature	-30℃~+70℃
Operation temp.	-20℃~+60℃
Weight	<400g
Accessories	Video cable, lens cap, rubber covert, charger, lithium battery, suitcase
