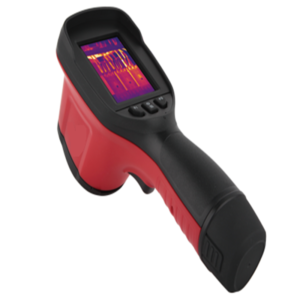

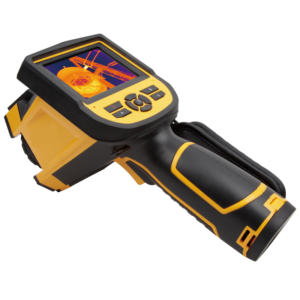

Product Features:
l Imaging with thermal, open a new angle of view;
l Area scanning, fast and exactly discover all the temperature information on this area;
l 120X120/80X80 pixel thermal imaging camera equal to 14400/6400 infrared thermometer working together;
l Non-touch temperature measurement makes the operator much safer;
l Inspect the electrical powered target safety;
l Imaging data analysis with computer;
l Saving time, increase efficiency.
l 120X120/80X80 pixel thermal imaging camera equal to 14400/6400 infrared thermometer working together;
l Non-touch temperature measurement makes the operator much safer;
l Inspect the electrical powered target safety;
l Imaging data analysis with computer;
l Saving time, increase efficiency.
Items |
AB-MTCK1 |
|
Detector |
Type |
Uncooled FPA |
Resolution |
120×120 |
|
Spectral range |
8-14um |
|
Frame rate |
50 Hz |
|
NETD |
0.06℃@30℃ |
|
Lens |
FOV |
33°x33° |
Focal range |
0.5m~∞ |
|
Focal method |
Focus-free |
|
Image |
Spatial resolution |
5mrad |
Visual camera |
Yes |
|
Display |
LCD |
3.2″ TFT LCD, 240×320 |
Color palette |
4 Color palettes for option(iron, rainbow, black hot, white hot) |
|
Display mode |
Thermal/visual quick switching, DSIE Technology |
|
Adjustment |
Auto |
|
Measurement |
Range |
-20℃~ +250℃ |
Accuracy |
±2℃ or ±2% (of reading, whichever is greater) |
|
Adjustment |
Auto |
|
Measure mode |
Settled central spot, Full screen Max/Min temp., Overheated alarm (voice, light) |
|
Emissivity adjustment |
Variable from 0.01 to 1.0（increment: 0.01） |
|
Settings |
Data/time/format, ℃/℉/K, language |
|
Storage |
Memory card |
Internal memory, up to Max. 5000pcs images |
Storage method |
Manual, single frame thermal, fusion image |
|
Photo format |
JPEG, with original digital data |
|
Voice annotation |
60 seconds (saved with image) |
|
Power supply |
Battery |
Special-packing rechargeable Li-on battery, replaceable |
Operation time |
>3 hours continuous operation |
|
Charging |
USB port |
|
Energy-saving mode |
Auto sleep, auto shut down |
|
Interface |
Power input |
Mini-USB |
Data transport |
Mini-USB |
|
Environment |
Working temp. |
-15℃~+50℃ |
Storage temp. |
-25℃~+60℃ |
|
Humidity |
≤90% Non-condensing |
|
Protection grade |
IP54 |
|
Shock resistance |
25G, IEC68-2-29 |
|
Vibration resistance |
2G, IEC68-2-6 |
|
Drop resistance |
1.5m |
|
Safety |
EMC |
Comply with CE |
Dimension & Weight |
Dimension |
240*88*135mm (H*W*D) |
Weight |
510g(w/ battery) |
|
