Intelligent Dual Sensor Optical Platf

We Turn Your Idea Into Product

Intelligent Dual Sensor Optical Platf

Product’s Highlights

  • Wider Detection spectrum: integration of high-definition visible light, medium-wave/long-wave thermal imaging/near infrared laser, complementary advantages of dual sensors detection, combination of active and passive detection, multi-source data aggregation and fusion processing, so that no hidden target, to satisfy the monitoring needs of day, night and all-weather types of environment.
  • Faster invert speed adjustment: the rotation speed can reach 80°/s, the acceleration can reach 100°/s2, faster start-stop speed, smooth operation, which helps to quick capture and track moving targets.
  • Wider coverage: Pan rotation range of 0° – 360° and Tilt rotation range of – 90° ~ + 90° to achieve dead angle detection and full dimension coverage.

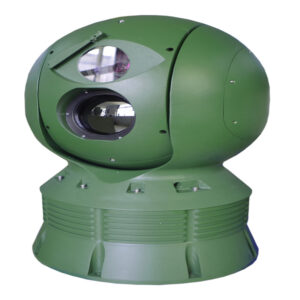

Intelligent Dual Sensor Optical Platf1

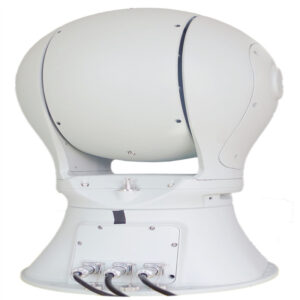

Intelligent Dual Sensor Optical Platf

Details

  • Overview
  • Combines visible camera, thermal imaging camera (cooled/uncooled), or/and NIR Laser Illumination, multi sensor modules together that suit for long distance monitoring in total darkness and foggy/rainy environment.
  • Optional system enhancement like Laser range-finders, GPS, electronic compass, auto-tracking system, I-analysis module etc… so as to achieve the functions like all-day full dimension monitoring, positioning, tracking, identification etc…
  • High load duty: able to bear 60X visible camera, larger length of thermal camera or higher power-consumption Laser illumination and so on.

  • Applications:

    • Public Places (Such as; Schools, Religious Places etc)

    • Seaport and airport monitoring;

    • Water system monitoring;

    • Storage monitoring;

    • Military base security monitoring;

    • Oilfield & oil depot security;

    • Fire source prevention & monitoring;

    • Ecological and environmental monitoring;

    • Border and coastal defense;

    • Urban security and anti-UAV applications;

    • Highways and railways monitoring.

Specification

Model

AB-ZSDN1654-7502

Detection

Vehicle: 13km，Human:4.8km

Identification

Vehicle:3.4km，Human: 1.3Km

Thermal sensor

Uncooled Vox sensor, 384*288 OR 640*512 resolution for option

Thermal lens

31~155mm, 5X continuous zoom, auto focus

FOV

12.4°×9.3°～2.5°×1.8°

Image process

1.Image enhancement: SDE        2.Color:   White hot/Black hot

3.Brightness and contrast：       4.AGC, adjustable

5.Digital zoom: 2X/4X            5.Cross: Display   6.Correction: Shutter/Background

Visible camera sensor

1/1.8” CMOS, 0.0002lux super high sensitive color to B/W CCD

2 megapixels,1920X1080

Automatic ICR switch

H.264/MPEG4/MIPEG

32Kbps~16Mbps，60Hz30 FPS

Visible camera lens

22～750mm, 34X zoom, auto focus

PTZ structure

1.Wind resistance: spherical,   multi-dimensional free-form surface shape, small wind resistance, strong   anti-shake, anti-33m/s strong wind

2. Split: upper and lower split   design, can be packaged and transported, combined quickly

Rotation

Pan: 0~360°, Tilt: +90°～-90°

Speed

1..Pan speed: 0.01°～80°/s  2. Tilt speed: 0.01°~60°/s

3. Acceleration: 100°/s2 Pan, 100°/s2 Tilt

4. Drive mode: direct drive with   high torque rare earth permanent magnet synchronous motor, high speed start   and stop, smooth and smooth tracking with rad

PT position

1. Positioning   accuracy: up to 0.02°, high-frequency fine-tuning pulse precision motor   drive, digital angle measurement sensor servo

2. Positioning time:   less than 4s

Patrol and Scan

1. Preset: no less   than 255

2. Path scanning:   support preset point cruise, day and night cruise, line sweep, apple skin   scan,

3. Watch function:   support watch preset point \ line sweep \ cruise \ apple skin

Data Feedback

1. Lens servo: support lens field   of view, magnification, ZOOM/FOCUS value query, return, positioning   function

2. Pan Tilt angle: support   horizontal, vertical angle real-time / query return, positioning function

Enhance

1. Heating defrost: oriented   industrial window defroster, automatic heating temperature control

2. Power failure memory: support,   can restore power off state

3. Motor protection: PT blocking   protection, high reliability

4. Fault detection: support power-on   self-test, status query and fault code feedback

5. Upgrade maintenance: remote   restart, remote upgrade function, convenient system maintenance

Protocol

1.TCP / IP, HTTP, DHCP, DNS, DDNS,   RTP and other network protocols

2. Support ONVIF2.0

3. Pelco-P, Pelco-D and other   industry-standard protocol, baud rate 2400,4800,9600,19200 alternative,   proprietary protocols can be customized

Power supply

AC90V~305V to DC48V Turntable   rotation power can be controlled in 120W Maximum power consumption 180W

Environmental Indicators

1. Working temperature: -40 ℃ ~ + 60 ℃ ;2. Storage   temperature: -45 ℃ ~ + 70 ℃

3. Humidity:<90% ;4.   Protection: IP66
