Ship Mounted Multi-sensor Camera

We Turn Your Idea Into Product

Ship Mounted Multi-sensor Camera

Product’s Highlights

  • Product features

    1. Wide detection spectrum: integrated low-illumination high-definition visible light and high-performance uncooled thermal imaging, dual-spectrum detection complements each other’s advantages, and can effectively meet users’ monitoring needs under day and night and all-weather conditions;
    2. Quick turn speed: the slewing speed can reach 80 ° / s, the acceleration can reach 100 ° / s2 (high configuration can reach 120 ° / s), the start and stop is fast, the operation is smooth, which helps to quickly capture and track moving targets;
    3. Wide coverage: azimuth rotation range 0 ° ～ 360 °, pitch rotation range -45 ° ～ + 90 °, realize no-dead-angle detection and full-dimensional coverage;
    4. High control precision: Adopt precision angle encoder and high-precision closed-loop servo control system, positioning accuracy can reach ± 0.02 °, high-performance image processing unit with high-precision focus control mechanism to achieve precise automatic focusing;
    5. Excellent tracking performance: Adopt a variety of advanced target acquisition algorithms and automatic tracking modules designed by the tracking algorithm, supplemented by high-precision servo control, the tracking accuracy can reach ± 0.5 mrad, to ensure stable tracking of the target during rapid movement and direction change;
    6. Good attitude stability: two-axis gyro stable structure design, using high-precision fiber optic gyroscope, combined with intelligent servo control algorithm, effectively isolate the disturbance of the optical system during the movement of ships, ships and other carriers, and always maintain the height of the visual axis Stable, stable accuracy can reach 2mrad;
    7. High degree of intelligence: Cooperate with the background management software developed by the company to easily realize hot spot alarms, regional intrusion alarms, cross-border intrusion alarms, radar linkage, panoramic stitching, 3D zoom positioning and other functions, greatly improving the unmanned system, Level of automation and informatization;
    8. Strong environmental adaptability: high-strength aluminum alloy material, internal and external double-proof technology, IP66 protection, rain-proof, dust-proof, corrosion-proof and electromagnetic interference-proof, suitable for various harsh environments.3 Video Performance.

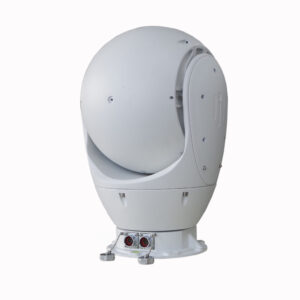

ACC1-210114094928

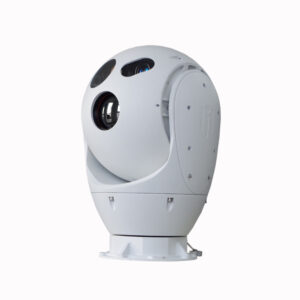

acc1-210114094935

Details

  • Overview
  • Product IntroductionShip mounted multi-sensor Camera integrates HD visible light camera, uncooled thermal camera, laser ranging finder, automatic tracking, gyro stabilization, intelligent analysis and precise electronic control. It is designed for ship / shipboard video acquisition and sea surface warning, key target warning, radar linkage and other applications designed long-distance detection system, which can adapt to all-weather, all-time, full-dimensional discovery, positioning, tracking, identification and tracking of the target function, the smallest distance to small ships and islands can be up to 8 km.

    Military quality design, the shell is made of super strong aluminum alloy material, spherical low wind resistance design, strong wind resistance, low agitation. Adopting internal and external double-layer “three-proof” technology and vacuum nitrogen-filled sealing technology, the protection grade of the whole machine reaches IP66, and the special salt-spray protection design, the protection grade reaches C5-M level, which effectively ensures the long-term stable operation of the equipment in the harsh ring mirror of the sea.

  • Applications:

    • Public Places (Such as; Schools, Religious Places etc)

    • Seaport and airport monitoring;

    • Water system monitoring;

    • Storage monitoring;

    • Military base security monitoring;

    • Oilfield & oil depot security;

    • Fire source prevention & monitoring;

    • Ecological and environmental monitoring;

    • Border and coastal defense;

    • Urban security and anti-UAV applications;

    • Highways and railways monitoring.

Specification

Specification

Model

AB-SZ20-TN0734C-3202 Ship   mounted multi-sensor Camera

Structural appearance

1. Structure: spherical structure

2. Windows: three windows or two windows

Rotation range

1. Pan: N × 360 ° continuous rotation

2. Tilt: -45 ° ～ + 90 °

3. Limit: The pitch has a soft limit function,   the program can be set

Spinning speed

1. Horizontal speed: 0.1 ° ～ 80 ° / s

2. Pitching speed: 0.1 ° ～ 80 ° / s

3. Acceleration: horizontal 120 ° / s2, pitch 120   ° / s2

4. Drive mode: direct drive with vigorous torque   rare earth permanent magnet synchronous motor, high-speed start-stop, smooth   tracking with radar linkage

Positioning accuracy

Positioning accuracy: up to 0.02 °,   high-frequency fine-tuning pulse precision motor drive, digital angle sensor   servo

Turntable zero position

1.Zero setting: support the setting of pan and   pitch zero

Stability accuracy

2mrad (RMS),   two-axis gyro stable

Cruise scan

1. Preset   position: no less than 255

2. Path scan:   support preset point cruise, line scan, scan speed can be set

3. Watch   function: support watch preset, line scan and cruise

Data return

1. Lens servo: support lens field of view,   magnification, ZOOM / FOCUS value query, return, positioning function

2. Turntable angle: support real-time / query   return and positioning functions of horizontal and pitch angles

Tracking mode

1. Support manual control   tracking

2. Support radar linkage   automatic tracking

3. Support front-end module   automatic tracking (optional)

4. Support automatic   tracking of back-end software

Enhancement

1. Motor protection:   turntable blocking protection, high reliability

2. Fault detection: support   power-on self-check, status query and fault code feedback

3. Upgrade and maintenance:   remote restart, remote upgrade function,       convenient system maintenance

Electrical Interface

1. Network interface: 1   channel 10M / 100M adaptive Ethernet port (including thermal image +   high-definition visible light + RS422 / 485 control)

2. Power source: 1 way DC24V

3. Physical interface:   military-grade aviation waterproof plug, protection grade IP67

Protocol

1. Network protocol: support TCP / IP, UDP, IPv4 /   v6, HTTP, RTP, RTSP; support Onvif, GB28181 network video protocol

2. PTZ control protocol: Pelco-D industry standard   and other multi-protocols, baud rate 2400, 4800, 9600, 19200 optional,   customizable private protocol

Environmental index

1. Working temperature: -25 ℃ ～ + 60 ℃

2. Storage temperature: -30 ℃ ～ + 70 ℃

3. Humidity:<95% RH

4. Anti-lightning surge: power supply 4000V,   communication video signal 2000V

5. Anti-salt spray: PH value 6.5 ~ 7.2, continuous   spraying for 96 hours, can still work normally

6. Vibration resistance: meets GJB150A.16 shipboard   environmental requirements

7. Protection level: IP67

Machine power supply

1. Power   supply: equipped with ultra-wide input power adapter, AC90V ～ 305V to DC24V

2. Power   consumption: The maximum power consumption of the turntable ≤250W, the stable   power consumption ≤50W

Volume and weight

1.  Dimension：Ф280mm×430mm

2.  Weight：≤18kg

Cameras

Visible Camera

1. Detector: 1/3 “low illumination CMOS

2. Resolution: 1920 × 1080 (2 million pixels)

3. Illumination: color 0.002 Lux ＠ (F1.2, AGC ON),   black and white 0.0002Lux ＠ (F1.2, AGC ON)

4. Lens focal length: 8 ～ 320mm continuous zoom

5. Action distance: Under the conditions of atmospheric visibility   greater than 10km, air humidity less than 50%, and background imperviousness,   the action distance to small ships or islands and reefs can reach 8km.

6. Lens control: electric zoom, manual / auto focus

7. Interface and video format: IP network output, H.265 / H.264

Uncooled Thermal Camera

1. Detector: The fifth generation of VOx uncooled   detector

2. Detection: 3km for ship, 2.2km for vehicle,   1km for human

3. Spectral range: 8μm ～ 12μm

4. Resolution: 640 × 512

5. Lens focal length: 25 ～ 75mm, 3X electronic zoom, optical-electronic fusion   relay zoom

6. Sensitivity: NETD is better than 40mk;

7. Focus control: electric zoom, manual / auto   focus

8. Strong light protection: anti-sun burn   function

9. Ranging ruler: adaptive optical zoom   proportional zoom

10. Life index: recording function (cumulative   working time, shutter times, limit temperature, environment

11. temperature, core device temperature), can be   viewed in real time through the web

Laser lighting

1.   Wavelength: 808nm

2.   Power: 5W

3. Laser   lens: 2 ° -30 °

4. Angle   control: DSS digital step lighting angle control technology

Recommended configuration of monitoring workstation

Host configuration

(Recommended only, provided by user)

CPU: 6 cores (i7 8700 and above)

Memory: 16GB or more

Hard Disk: 1TB SATA

Display: resolution 1920 * 1080

Network: LAN or 100M Ethernet

System: Windows 7 or Windows 10

Database: MySQL 5.1 and above

Other: Windows SDK, MFC bottom support library

Power supply; keyboard, mouse, etc.

DF3000 monitoring and control   software

(Optional)

1. Functional modules: video preview, video playback, device PTZ control,   device management, user management, intelligent analysis alarm, automatic   tracking control, GIS map, information management, and expandable support for   radar photoelectric linkage.

2. Intelligent function: support intelligent analysis and alarm functions   such as regional intrusion, entering area, leaving area, automatic tracking,   etc., can be expanded to support radar linkage, binocular panoramic stitching   at any angle, 3D zoom

3. User management: multi-level users, department and role management,   support 999 front-ends / departments.

4. GIS map: support the functions of distance measurement and area   measurement, video suspension display control, support custom plotting,   support the general function of map electronic map dragging, zoom in or zoom   out of the mouse scroll level, support display of eagle eye map, scale.

5. Support Chinese and English, support skin change, support custom menu   bar, expandable support control key operation.

6. It can be connected to mainstream ball machine guns of mainstream   manufacturers such as Hikvision, Dahua and Uniview.

Other instructions

Such as: equipment cabinets, operation consoles, network switches, UPS   backup power supply, power plug board, equipment installation platform   construction, power supply facilities, etc. provided by the user.
