Temperature Detection Thermal Camera

We Turn Your Idea Into Product

Body Temperature Thermal Camera/ Temperature Detection Thermal Camera

Features:

u  More exactly temperature measurement, digital thermometer, thermal image is based on the original data processing, separation between front-end temperature measurement techniques and thermal video.

u  UFPA detector, small size, longer using life, lower power consumption, work more stable than normal uncooled detector.

u  The latest generation of MEMS technology, NETD: 45mk, get more delicate picture.

u  SDE, no image noise, 16 pseudo colors.

u  Special temperature alarm technology

u  Military style design, one integral aluminum alloy housing and sealed with nitrogen, IP66 weatherproof, enable the camera works well in severe weather conditions.

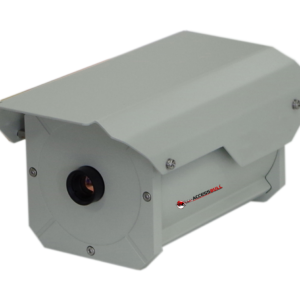

Temperature Detection Thermal CameraA

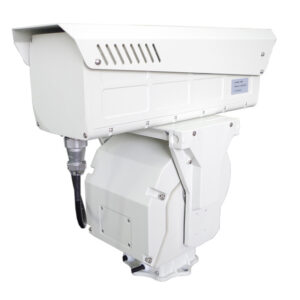

Cooled Thermal Imaging Camera3

Details

  • Overview:
  • KTC series is designed based on the latest 5th uncooled infrared technology. With 384 x288/640 x512 UFPA sensor. Built- in advanced digital circuit processing technology, which is capable of big scope of temperature detection of targets and output temperature distribution image and temperature information. One integral aluminum alloy housing sealed with nitrogen and IP66 ingress protection ensures its proper functioning outdoor.

    Applications:

    • Public Places (Such as; Schools, Religious Places etc)

    • Seaport and airport monitoring;

    • Water system monitoring;

    • Storage monitoring;

    • Military base security monitoring;

    • Oilfield & oil depot security;

    • Fire source prevention & monitoring;

    • Ecological and environmental monitoring;

    • Border and coastal defense;

    • Urban security and anti-UAV applications;

    • Highways and railways monitoring.

Specification

Model

AB-KTC4101

AB-KTC4102

Application   Distance

10 Meter

20 Meter

Thermal sensor

5th   generation UFPA

Resolution

384*288 pixel（640*512 optional）

Spectral response

7.5～14μm

NETD

45mK（@25℃ F1.0）

Thermal lens

10mm F1.0

20mm F1.0

Housing

1, One integral aluminum alloy housing

2, IP66 ingress protection

Image processing

1. Stable operation temperature   without TEC, starting time less than 4 seconds

2. SDE digital image processing

3. 16 pseudo color and B/W, B/W   conversion

4. 2X /4X / 8X digital amplification

Temperature   accuracy

1. Temperature accuracy: ±2℃ or ±2% of reading, take the maximum

2. Temperature range: -20℃－120℃（550℃ optional）

3. Over temperature alarm

Temperature model

1.        Display Max /Min /Avg Temperature

2. Fixed area monitoring

Interface

 One RJ45 network   interface

Power Supply and Environment   parameters

2. AC24V/DC24V with power adapter

3. Waterproof aviation connector

1. Operational temp.: -25℃～55℃（-45℃ optional）

2. Power consumption: common 10W, peak   20W
