Vehicle Mounted Thermal Camera

Product’s Highlights

  • The whole machine is made of super-strong aluminum alloy shell, IP66 protection, rain and dust proof, and adapted to various harsh environments.
  • Extensible laser ranging, Beidou/GPS, electronic compass and other sensors to constitute a multi-functional situational awareness long-range monitoring equipment;
  • Adopted with light-loaded CNC Pan-Tilt, 360o continuous rotating observation, no dead angle, smooth operation and small image jitter
1578374171418465

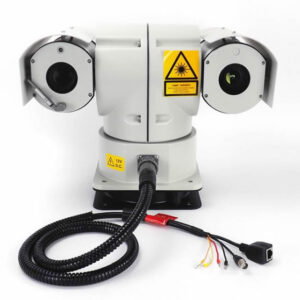

2mp-20x-30x-vehicle-ptz-laser-camera28247024357b

Details

  • Overview
  • It integrates infrared thermal imaging camera, high-definition visible camera, video coding, cloud cover and control electronic system into one equipment. Its’ integrated design, highly centralized and easy to install and use;
  • The thermal designed based on MEMS technology with the latest generation of VOx detectors, has a detection sensitivity of up to 50 mk, higher sensitivity than other conventional products, more delicate picture quality and less affected by fog, rain and snow weather;
  • Full reinforcement structure design, super-strength stainless steel central bearing, multi-point and omni-directional reinforcement design, to meet the environmental requirements of vibration and impact for military vehicle;

  • Applications:

    • Public Places (Such as; Schools, Religious Places etc)

    • Seaport and airport monitoring;

    • Water system monitoring;

    • Storage monitoring;

    • Military base security monitoring;

    • Oilfield & oil depot security;

    • Fire source prevention & monitoring;

    • Ecological and environmental monitoring;

    • Border and coastal defense;

    • Urban security and anti-UAV applications;

    • Highways and railways monitoring.

Specification

Model

AB-HEDN1154-3202

AB-HEDN1156-3202

Detection

Vehicle: 8.6km,Human:3.4km

Identification

Vehicle:2.4km, Human: 900m

Thermal Camera System

Sensor

5th generation FPA VOx uncooled detector

384*288 resolution

640*512 resolution

Spectral range

7.5～14μm

NETD

50mK (@25℃ F1.0)

Focal length

25mm~105mm, 5X continuous zoom, auto focus

FOV

18.5°*13.9°~3.7°*2.8°

30°* 23°~6.2°*4.6°

Image process

1. Image enhancement: SDE digital image enhancement technology to   enhance image details

2. Pseudo-color polarity: 16 kinds of pseudo-color images, hot black /   hot white two polarities

3. Image parameters: AGC automatic gain control, brightness, contrast

4. Electronic zoom: 2×, 4×, support global synchronous display

5. NUC correction: automatic / manual correction, background correction

Lens Control

1.Zooming: Electrical Zoom.  2.Focusing:   Manual/Auto Focus

3. Optical machine: 3CAM mode and AS+DOE optical structure, high   infrared over transmission, zoom process without virtual focus, smaller axis.

Visible Camera System

Camera

1/2.8” star level CMOS, 0.05lux/0.01lux color to B/W CCD

2 MP ,1920X1080

Automatic ICR switch

H.264/H.265 MPEG4/MIPEG

32Kbps~16Mbps,60Hz30 FPS

Visible lens

8mm～320mm, 2MP, 40X zoom, auto focus

Optical IR correction design, diurnal focus

Housing

 Material

High strength   aluminum alloy shell，waterproof seal，To avoid the growth of mold and   moisture generated

Structure

Integrated single-window design

Surface coating

PTA three-resistance coating, Seawater corrosion resistance

PTZ

Load Capacity

20kg

Range/Speed

Range：Pan: 0~360°, Tilt: +45°～-45°;    Speed: Pan: 0.01～20°/S, Tilt: 0.01～15°/S

Preset

128 Preset, support lens zooming   and focusing preset

Azimuth information

support angle query return,   positioning, display.

Null-point correction

support north null-point remote   correction function.

Damping base

special vehicle mounted damping   base

Interface

Network Interface

                          RJ45

Physical interface

water-proof aviation connector

Power Supply

DC24V, anti-reverse connection   protection

Environment Parameter

Working/Storage Temp.

Working temperature: -40℃~+60℃; Storage temperature: -45℃~70℃

Humidity

＜90%

Anti-lighting

Built-in auto Fuse-protected device, Power   4000V，Signal 2000V

Weight & Power Consumption

Weight: 30kg (include PT); Power   consumption: 120W
