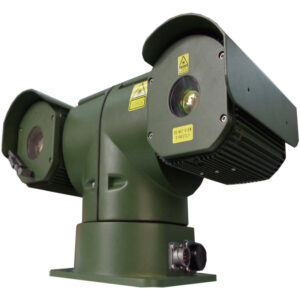

Vehicle Mounted Laser Camera

We Turn Your Idea Into Product

Vehicle Mounted Laser Camera

Product’s Highlights

  • Key Benefits:
    • Long range 24-hours monitoring.
    • Delicate and smooth images．
    • Convenient for installation and application.
    • 360 degree of Omni-directional Pan-Tilt
    • Super-strong aluminum alloy with IP66
    • Higher sensitivity
    • Effective in all environments
    • Small size and low weight
access1-200106145A8
2mp-20x-30x-vehicle-ptz-laser-camera28247024357b

Details

  • Overview
  • l Laser Camera is an excellence night vision camera specially developed for vehicle

    l  SDE digital image processing, AGC, 2X digital amplification;

    l  10 pseudo color and B/W, B/W inverse;

    l  Intelligent functions: cross-border/ intrusion detection and target tracking;

    l  255 level alarm threshold can be setup

    l  Advanced algorithm support shot-point/ fire detection and alert;

    l      One integral aluminum alloy housing, water proof, IP66 weather proof, anti-dust.

  • Applications:

    • Public Places (Such as; Schools, Religious Places etc)

    • Seaport and airport monitoring;

    • Water system monitoring;

    • Storage monitoring;

    • Military base security monitoring;

    • Oilfield & oil depot security;

    • Fire source prevention & monitoring;

    • Ecological and environmental monitoring;

    • Border and coastal defense;

    • Urban security and anti-UAV applications;

    • Highways and railways monitoring.

Specification

Model AB-UAQN3002X
Detection Day: 800m; Night: 450m
                                                             Laser



Laser Light Source

Consumption: 5W

Wavelength: 810nm   military grade NIR

Encapsulation: the   illuminator is sealed with inert gas to prevent oxidation



Laser lens

Lens form: 30mm F1.4 telephoto   lens

Laser angle: 1.2°～40°

Homogenization: GHT-II   super homogenization HD illumination patented technology
Visible Camera
Lens

Focal   Length: 4.5 – 135mm, 200 mil electrical focus;

Focusing:   manual/auto focus, 3A adaptive active focusing algorithm, supporting multiple   trigger modes, accurate and speedy;

Night-day   wide spectrum: 0.4-0.75um visible broad spectrum window and 0.8-0.95um NIR   narrow spectrum window with day-night independent double-pass



Visible Lens

Surface:   1/2.8” Star Level CMOS, Integrated ICR Dual Filter D/N Switch;

Resolution:   2 million pixels, 1920 x 1080

Illumination:   0.05Lux high sensitive colour, 0.01Lux black
                                     PTZ
Duty 10 kg
Rotation Pan: 0 – 360° continuously，Tilt: +90°～- 90°
Rotation speed Rotation speed：Pan: 0.01～100°/S，Tilt: 0.01～60°/S
Accuracy ±0.1°
Preset 255 presets, support   lens zooming and focusing preset
Mode Support 6 cruising   line, 1 apple-skin scanning, 1 line-cruising
Network
Network interface RJ45.10, 10/100 Base-T   adaptive (integrated video output RS422/485)
Network Protocol TCP/IP,   UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3,   UPNP, PPPoE, DNS, FTP; support    ONVIF2.0 etc.
                            Environment   Parameter
Operating   temperature -25℃~+60℃(-40℃ Optional)
Storage   temperature -45℃～70℃
Protection Level IP66
                              General
Total Consumption 180W
Power supply AC/DC24V,   anti-reverse connection protection
Weight ≤25kg   (include PTZ)
